This system is actually two complete EU6110F systems that can be used independently or combined with the Leakage Split kit for ceiling neutralization. Includes two 1.5 hp calibrated fans making it Ideal for large size enclosures up to 102,000 ft3/ 2,900 m3 for Inerts and 212,000 ft3/ 6,000 m3 for halocarbons. Includes fan cases and tool cases. Double hi-power fans offers a huge advantage. Not only in the maximum size you can test; probably any enclosure. But also enough power to test large dampers while installed. The high power fans will test their ability to open and then accurately measure the entire relief vent pathway to ensure the peak pressure specifications are not exceeded. Test for hold times in flooded volumes up to 102,000 cu ft (2000 m3) for Inert agents and 140,000 cu ft (4000 m3) for halocarbon chemical agents. This system will test the venting for a volume up to a maximum of 24,000 cu ft (660 m3) for Inert agents although vents up to 16 sq ft (1.6 m2) can be measured individually.

Why Retrotec for Enclosure Integrity?

All Retrotec systems include tech support from Retrotec who originated the idea of Enclosure Integrity testing in 1984. They promoted it within NFPA and in 1986 wrote the first Enclosure Integrity standard. Retrotec has been the lead researcher for enclosure testing ever since. Every major clean agent system manufacturer worldwide relies on Retrotec’s expertise for both hold time and peak pressure predictions.

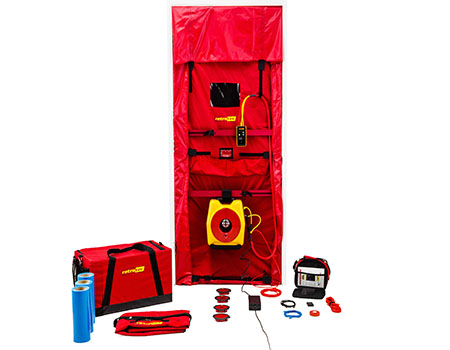

Included Items

2 x DM32 WiFi Digital Gauge Package

• Each Package contains:
• DM32 WiFi Dual Channel Color Touchscreen Manometer
• USB Cable, 6′ (1.8 m)
• Cat5 Cable, 7′ (2 m) Blue
• DM32 USB Charging Module (120V/60Hz, 240V/50Hz, or 110V/50Hz)
• DM32 Software Suite (Virtual Gauge, DM32 Configurator, Data Logger, and DM32 USB driver)
• Gauge Case
• DM32 Magnetic Clip
• ISO17025 calibration of DM32
• Gauge Calibration Verification Report.

2 X Modular Door Panel for 5000/6000 Fan series

• PN204 Panel Case with Shoulder Strap 33x33x7
• PN221 Fan Panel for 5000/6000 Fan series
• PN207 Large Fill-in Sheet for Fan Panel
• PN208 Small Fill-in Sheet for Fan Panel 1 PN210R Large X Panel 1 PN211 XY Panel
• FN235 Fan Safety Strap for Modular Panel for 5000/6000 Fans

2 x 6000 Series Fan Set

• Each fan set contains:
• 6000 Series Calibrated Fan
• High Power Drive for 6000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
• Range Ring A for 5000/6000 Series Fan
• B8 Plate for 5000/6000 Series Fan
• 8 x 4″ Blank Plugs
• Power Cord
• 2 x Fan Cover
• System Calibration Verification Report.

1 x Large Cloth Door Panel & Frame – Double Fan

• Large 50″ Aluminum Frame
• Large #5 Crossbar
• 3 x Fan Crossbar Strap for Aluminum Frame
• Double Fan Cloth for Large 50″ Aluminum Frame
• Large Roll Up Cloth Case
• 2 x Large #6 Crossbar.

1 x Leakage Split Kit (Imperial or Metric)

• 2000/3000 Flex Duct
• Flex Duct Fill-In Sheet
• Flex Duct Packing Triangle
• Subfloor test panel for Model 2000/3000 Fans
• Field Calibration Plate for Modular Panel
• Flex Duct Case with Shoulder Strap
• 2 x Case for System Accessories
• 2 x Fan Case
• 6 x Roll of Grill Masks, 12″ x 216′ (30.5 cm x 65.8 m) with 12″ (30.5 cm) perforations
• 2 x Blower Door Tubing Kit
• 2 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)
