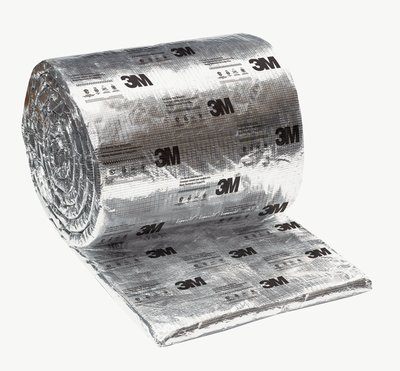

3M™ Fire Barrier Duct Wrap 615+

Smart solution addressing a variety of application needs including air ducts, grease ducts, and chemical exhaust ducts. Manufactured with a man-made vitreous spun fibre, which provides low thermal transfer properties in a lightweight, low profile, easy to apply product . The insulative properties of Duct Wrap help keep heat, fire and smoke contained.

Protect both grease ducts and air ducts, in an easy to install format (lightweight, flexible) while passing the necessary fire tests to achieve up to 2-hour fire-resistance requirements. Use 3M™ FSK Facing Tape 3320, 3M™ aluminium Foil Tape 425 or similar system compatible heat-resistant tape to seal any cut edges of the duct wrap. When the duct penetrates through a fire-rated wall or floor assembly, it must be firestopped using a system-approved 3M™ Fire Barrier Sealant (check system details for approved sealants).

  • Testing in accordance with AS1530.4, AS4072.1, and ASTM E814 (UL Listed).
  • Up to 2 hour fire protection tested to AS1530.4 for external and internal fire
  • Third-party certified to ASTM E 2336 (grease duct test standard) and ISO 6944 (air duct test standard)
  • Lightweight 96 kg/m3 and thin 38 mm for easy application.
  • Listed by California State Fire Marshal (Listing No. 2440-0941:5555)
  • Supports maximum temperatures of up to 1200 °C
  • Single and double layer systems available
  • Apply in 1 layer for air ducts
  • Available in three sizes : Small Roll (38mm x 610mm x 7.62m oll) Large Roll (38mm x 1219 mm x 7.62m oll) Collar (38mm x 152mmx 7.62 m roll)

Specifications
Brand: 3M™
Fire Rating: 2 Hour
Product Type: Duct Wrap, Duct Wrap Collar
Water Tight: No

3M™ Fire Barrier Duct Wrap 615+

Fire resistance of 3M™ Fire Barrier Duct Wrap 615+protection system
